Gasketed Plate Heat Exchanger

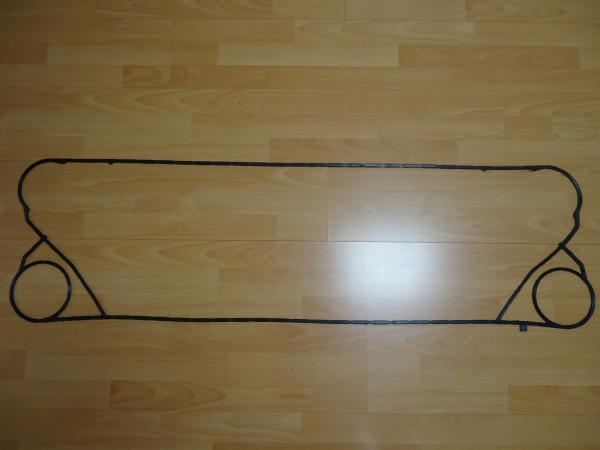

Plate Heat Exchanger gasket
The gasket is made of a snap fastener gasket,the sealing and fixing
functions are separated,and the sealing function and disassembly
and assembly are simple.
Two sealed is arranged below the corner hole,and a signal hole is
arranged at the same time,so as to prevent the mutual mixing of the
two medias.
| Material of Gasket | Operating Temperature(℃) | Suited Liquid kinds |
| NBR | -15 to +135 | Water,sea water etc |
| EPDM | -25 to +180 | Hot water,steam etc |
| F26 | -55 to +230 | Acid,Caustic,Fluid |
| TPF | 0 to +160 | Concentrated acid etc |
Product advantage
1, Reliable quality,lower price
2, Fast delivery
3, Fully fit for plate heat exchanger
PHE Principle
Flat plate heat exchanger is a type of heat exchanger that uses
metal plates to transfer heat between two fluids.This has a major
advantage over a conventional heat exchanger in that the fluids are
exposed to a much larger surface area because the fluids spread out
over the plates. This facilitates the transfer of heat, and greatly
increases the speed of the temperature change. Plate heat
exchangers are now common and very small brazed versions are used
in the hot-water sections of millions of combination boilers. This
high heat transfer efficiency for such a small physical size has
increased the domestic hot water(DHW) flow rate of combination
boilers. The small plate heat exchanger has made a great impact in
domestic heating and hot-water.Larger commercial versions use
gaskets between the plates.
Payment and Shipping
Payment
Standard payment terms: 100% in advance.
Pay 30% deposit in advance, 70% balance before shipment.
More payment terms could be provided (T/T, WESTERN UNION)
Shipping
Delivery time: 5-8 working days after payment receipt confirmed
(based on actual quantity)
Packing: standard export packing, or customized packing as your
request.
Professional goods shipping forwarder.
